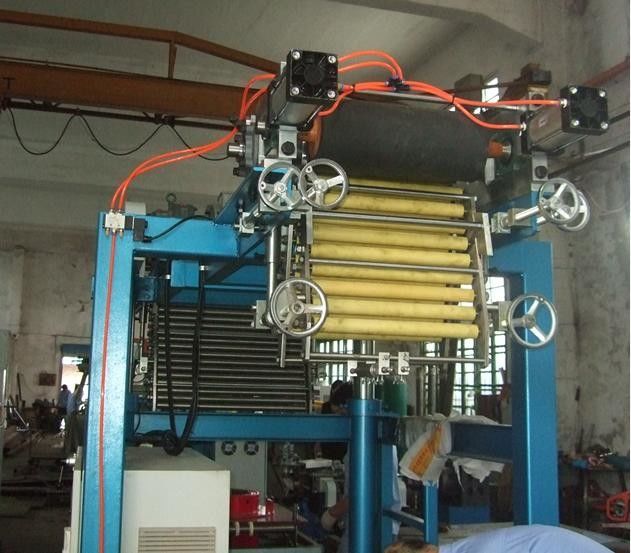

pVc Film Blowing Machine Thickness 0.025 - 0.07mm

PVC thermal shrinkable inflation film machine

structure

1. extruder

2. rotary die

3.wind ring spinning

4. the first traction shaper

5. the second traction

6. heating water tanks

7. the third traction

8. the third traction

9. double-station wing machine

10. electric control box for extruder

11. auxiliary electric control box

Technical  Data

Unit-type                                      SJ45-Sm700
Extruder-type                               SJ45x26D
Screw radio                                  26:1 L/D
Driving motor                               11kw
Heating power                              9.5kw
Revolution die mould                    Φ80-Φ90mm
Width                                            100-500mm
Thickness                                      0.025-0.07mm
Output                                           20-35kg/h
Lifting                                             Pillar under electric lift
