PVC Heat Shrink Film SJ75×29-SM1200

Good quality Plastic Film Blowing Machine for sales
Good quality Plastic Film Blowing Machine for sales

——

I'm Online Chat Now

PVC Heat Shrink Film SJ75×29-SM1200

China PVC Heat Shrink Film SJ75×29-SM1200 supplier

Large Image :  PVC Heat Shrink Film SJ75×29-SM1200

Product Details:

Place of Origin: Shanghai
Brand Name: BEIYANG
Model Number: SJ75×29-sm1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: reconsideration
Packaging Details: 1 set with stretch film in 45 foot high cabinets
Delivery Time: 45 work days
Payment Terms: T/T, L/C,
Supply Ability: 30 units per year
Contact Now
Detailed Product Description
Thickmess: 0.03-0.07mm Output: 90-110kg/h
Main Motor: 45KW Screw Radio: 29:1 L/D
Heating Power: 18KW Screw Diameter: φ75mm

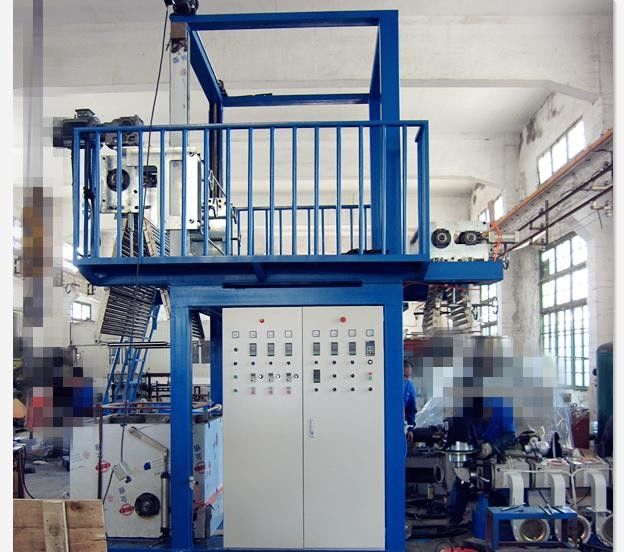

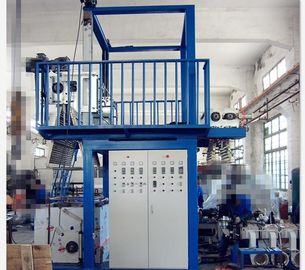

PVC heat shrink (the lift) blow film equipment system

The new generation of mold

① Material :use high quality alloy steel structure

② machining: Be made of high precision CNC machining







detailed drawing                PVC Heat Shrink Film SJ75×29-SM1200









Unit-type                                                          SJ75×29-SM1200
Screw length ration                                          29:1 L/D
motor power                                                     45KW
Extruder machine heating power                     18KW
Die diameter                                                    φ160mm
Width                                                               800-1200mm
Thickmess                                                       0.03-0.07mm
Output                                                             90-110kg/h
