Mini PVC Film Blowing Machine ,

Good quality Plastic Film Blowing Machine for sales
Good quality Plastic Film Blowing Machine for sales

——

I'm Online Chat Now

Mini PVC Film Blowing Machine ,

China Mini  PVC Film Blowing Machine , supplier

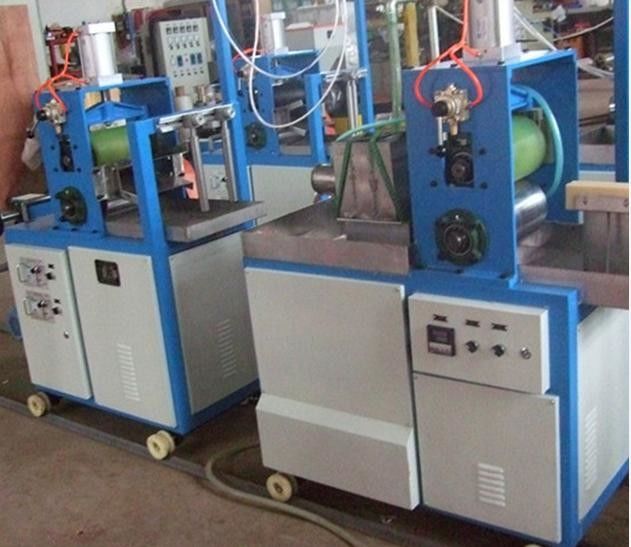

Large Image :  Mini PVC Film Blowing Machine ,

Product Details:

Place of Origin: shanghai
Brand Name: beiyang
Certification: PVC heat shrinkable casing invention certificate
Model Number: SJ30*25-sm250

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: reconsideration
Packaging Details: Wrap film packaging or packed in wooden cases
Delivery Time: 30 work days
Supply Ability: 999
Contact Now
Detailed Product Description
Width Of Finished Products: 20-80mm Finished Thickness: 0.025-0.06mm
Production: 5-15kg/h Screw Ratio: 25:1 L/D
Heating Power: 8KW Extruder-type: SJ30×25B



PVC heat shrinkable water bath method of blowing machine

application The scope of:Packaging film Used in electrical appliances, electronic components, battery casing, skin care products, cosmetics and so on outer packing





Technical



1. Unit-type                       SJ30-Sm250

2. Extruder-type                SJ30x25B

3. Screw diameter             Φ30mm

4. Screw radio                  25:1 L/D

5. Driving motor               5.5KW

6. Heating power             8KW

7. Die diameter                 Φ10-Φ20mm

8. Width                            20-100mm

9. Thickness                    0.02-0.05mm

10. Output                         5-15kg/h
