| Heating Power: | 9.5KW | Lateral Shrinkage: | 45-50±2％ |
|---|---|---|---|
| Longitudinal Change: | 3-5±1％ | Screw Diameter: | φ45mm |
| Thickness: | 0.025-0.07mm | Output: | 20-35Kg/h |

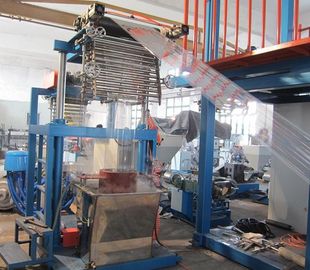

heat shrinkable label film blowing machine-- SJ45×26-SM700--Product width100-500mm
Quick Details:
1. extruder
2. rotary die
3. wind ring spinning
4. the first traction shaper,
5. the second traction,
6. heating water tanks
7. the third traction
8. the third traction
9. double-station wing machine
10. electric control box for extruder
11. auxiliary electric control box
Technical Data:
| Unit-type | SJ45-Sm700 |
| Extruder-type | SJ45x26D |
| Screw radio | 26:1 L/D |
| Driving motor | 11kw |
| Heating power | 9.5kw |
| Revolution die mould | Φ80-Φ90mm |
| Width | 100-500mm |
| Thickness | 0.025-0.07mm |
| Output | 20-35kg/h |
| Lifting | Pillar under electric lift |
