| Lateral Shrinkage: | 45-50±2％ | Longitudinal Change: | 3-5±1％ |
|---|---|---|---|
| Screw Diameter: | φ55mm | Thickness: | 0.025-0.07mm |
| Output: | 40-55Kg/h | Unit-type: | SJ55-Sm900 |

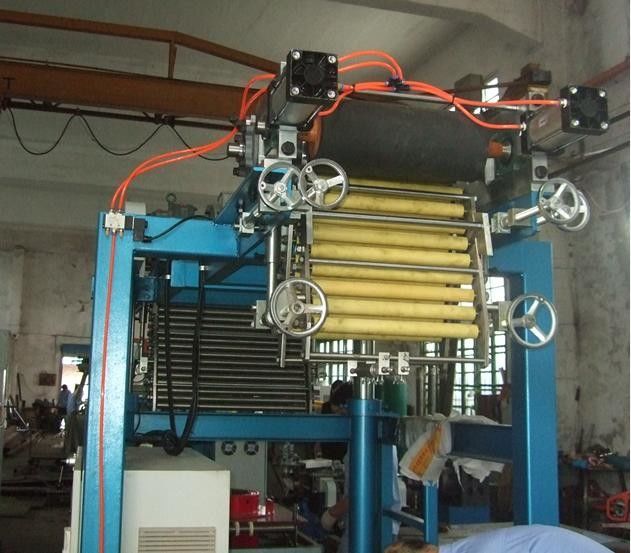

The PVC heat shrink film blowing unit
With the technical features of rotary die, variable speed frequency control and auto thermostatic control, which make the product plasticizing fine, film thickness uniformity, transparency, smoothness, shrinkage, and other technical quality indicators are up to standard printing level (after adjustment formula or the production of PVC packaging of heat shrink film)
| Unit-type | SJ55-Sm900 |
| Extruder-type | SJ55x26D |
| Screw radio | 26:1/28:1 L/D |
| Driving motor | 18.5kw |
| Heating power | 11kw |
| Revolution die mould | Φ100-Φ110mm |
| Width | 350-700mm |
| Thickness | 0.025-0.07mm |
| Output | 40-55kg/h |
| Lifting | Pillar under electric lift |
