PVC Film Blowing Machine

China PVC  Film Blowing Machine supplier
PVC  Film Blowing Machine supplier PVC  Film Blowing Machine supplier PVC  Film Blowing Machine supplier PVC  Film Blowing Machine supplier

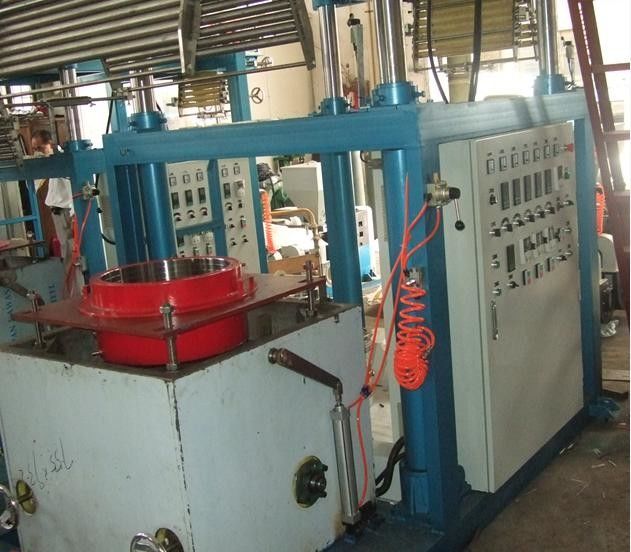

Large Image :  PVC Film Blowing Machine

Product Details:

Place of Origin: Shanghai
Brand Name: BEIYANG
Model Number: SJ55×26-SM900

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: reconsideration
Packaging Details: 1 set with stretch film in 40 inch container
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Lateral Shrinkage: 45-50±2% Longitudinal Change: 3-5±1%
Screw Diameter: φ55mm Output: 40-55Kg/h
Unit-type: SJ55-Sm900 Screw Radio: 26:1 L/D

PVC thermal shrinkage inflation film machine-- SJ55×26-SM900



The unit struchure advanced reasonable, manipulate easily, and is mainly consists of the following parts: extruder, rotary die, wind ring spinning, the first traction shaper, the second traction, heating water tanks, the third traction, double-station wing machine, electric control box for extruder and auxiliary electric control box.





DATA:



Unit-type SJ55-Sm900
Extruder-type SJ55x26D
Screw radio 26:1/28:1 L/D
Driving motor 18.5kw
Heating power 11kw
Revolution die mould Φ100-Φ110mm
Width 350-700mm
Thickness 0.025-0.07mm
Output 40-55kg/h
Lifting Pillar under electric lift





               PVC  Film Blowing Machine
