Product Details:
Payment & Shipping Terms:
|
| Screw Design: | Double-screw / Twin-screw | Application:: | Pipe, Film, Profile, Sheet, Pvc Pe/p |
|---|---|---|---|
| Condition: | New | Weight: | 100kgs |
| Product: | Screw And Barrel | Brand Name: | JINSHUNLUOGAN |

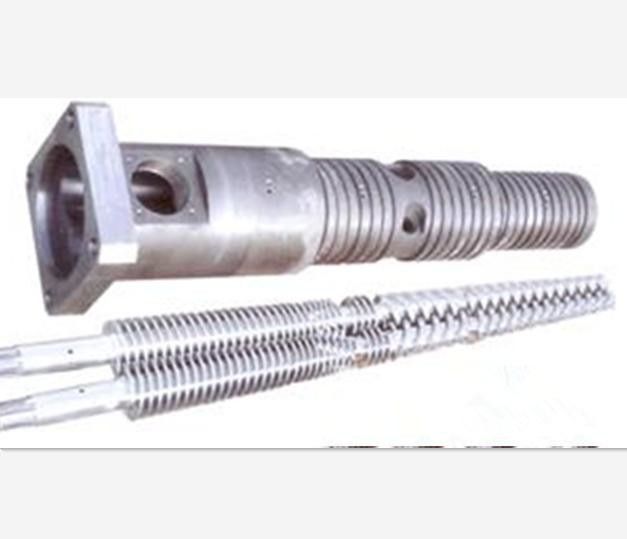

Taper double screw and double hole cylinder types
Conical Twin Screw Application
1) PVC pipe extrusion line;
2) PVC sheet extrusion line;
3) PVC profile extrusion line
4) WPC extrusion line;
5) PVC granulation/recycling line;
6) PVC foaming board production line;
The material can be new or recycle, the material can compound calcium power 5%-300%.
DATA:
| Specification(d/D) | Length(mm) | Ability(kg/h) | Speed(rpm) |
| Ф25/Ф53 | 540 | 25-40 | 5-50 |
| Ф35/Ф77 | 810 | 40-70 | 5-50 |
| Ф45/Ф90 | 990 | 50-80 | 5-45 |
| Ф50/Ф105 | 1070 | 100-150 | 4-45 |
| Ф51/Ф105 | 1220 | 100-150 | 4-45 |
| Ф55/Ф110 | 1220 | 120-150 | 4-40 |
| Ф60/Ф125 | 1320 | 150-200 | 4-40 |
| Ф65/Ф120 | 1440 | 200-250 | 4-40 |
| Ф65/Ф132 | 1440 | 200-250 | 4-40 |
| Ф70/Ф140 | 1460 | 220-300 | 4-40 |
| Ф75/Ф150 | 1480 | 250-320 | 4-35 |
| Ф80/Ф143 | 1800 | 300-360 | 4-35 |
| Ф80/Ф156 | 1660 | 300-360 | 4-35 |
| Ф90/Ф184 | 2000 | 400-500 | 3-35 |
