Product Details:
Payment & Shipping Terms:
|
| Shot Weight: | 30g-8000g | Place Of Origin: | Zhejiang, China |
|---|---|---|---|
| Model Number: | Injection | Nitrided Hardness: | HRV 60-80 |
| Material: | 38CrMoAIA | Nitriding Depth: | 0.5-0.8mm |

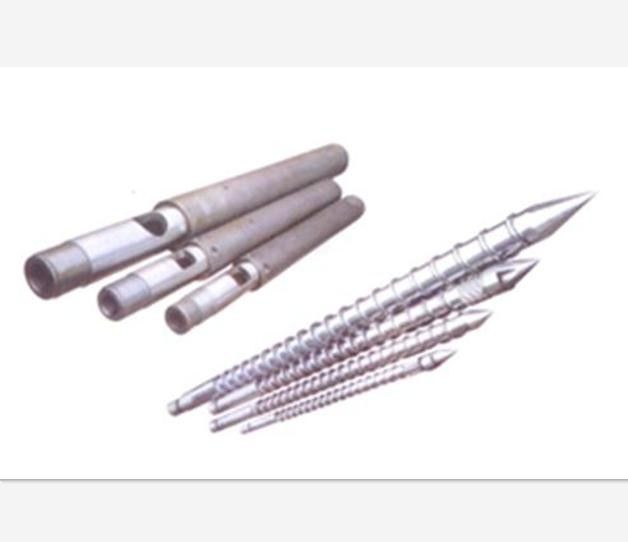

Single screw and barrel, screw and barrel for injection moulding machine
Specification parameter
| injection volume | screw diameter×length | barrel diameter×length |
| 30-90 | φ30×90 | φ85×860 |
| 60-125 | φ35×910 | φ85×860 |
| 100-150 | φ38×935 | φ95×900 |
| 125-160 | φ40×980 | φ95×910 |
| 125-300 | φ42×1030 | φ105×8880 |
| 250-400 | φ45×1210 | φ115×1165 |
| 300-500 | φ50×1300 | φ125×1260 |
| 450-600 | φ55×1335 | φ130×1320 |
| 500-700 | φ56×1350 | φ130×1350 |
| 500-700 | φ60×1380 | φ140×1350 |
| 650-800 | φ65×1415 | φ150×1420 |
| 700-1000 | φ70×1790 | φ160×1685 |
| 800-1250 | φ75×1825 | φ170×1725 |
| 1000-1500 | φ80×2000 | φ180×1805 |
| 1250-2000 | φ85×2300 | φ190×1900 |
| 2000-3000 | φ90×2700 | φ210×2000 |
| 2500-5000 | φ100×2600 | φ230×2405 |
| 3000-6000 | φ110×2600 | φ256×2590 |
| 4000-10000 | φ120×2800 | φ256×2800 |
| 6000-8000 | φ130×3010 | φ256×2970 |
| 8000-10000 | φ145×3010 | φ256×3200 |
| 10000-15000 | φ160×3500 | φ270×3200 |
| 13000-25000 | φ170×3415 | φ317×3380 |
