Auto Injection Molding Machine Spare Parts , Injection Screw Barrel Anti Corrosion

China Auto Injection Molding Machine Spare Parts , Injection Screw Barrel Anti Corrosion supplier

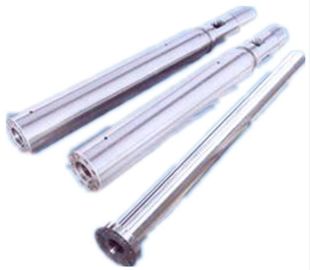

Large Image :  Auto Injection Molding Machine Spare Parts , Injection Screw Barrel Anti Corrosion

Product Details:

Place of Origin: Zhejiang
Brand Name: JINSHUNLUOGAN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB Shanghai
Packaging Details: Slushing oil coated& film wrapped in wooden case
Delivery Time: in 30 days after receiving down payment
Payment Terms: T/T
Supply Ability: 150 Sets per Month
Contact Now
Detailed Product Description
Shot Weight: 25g-4000g Place Of Origin: Zhejiang, China
Model Number: Injection Material: 38CrMoAIA
Nitriding Depth: 0.5-0.8mm Power Of Locknut: 250KN-32000KN

Nitriding depth 0.5mm injection moulding machine screw barrel



Material



High quality alloy-steel

1) 38CrMoAIA(JIS SACM645)

2) 42CrMo(JIS SCM440)



Specification parameter



injection volume screw diameter×length barrel diameter×length
30-90 φ30×90 φ85×860
60-125 φ35×910 φ85×860
100-150 φ38×935 φ95×900
125-160 φ40×980 φ95×910
125-300 φ42×1030 φ105×8880
250-400 φ45×1210 φ115×1165
300-500 φ50×1300 φ125×1260
450-600 φ55×1335 φ130×1320
500-700 φ56×1350 φ130×1350
500-700 φ60×1380 φ140×1350
650-800 φ65×1415 φ150×1420
700-1000 φ70×1790 φ160×1685
800-1250 φ75×1825 φ170×1725
1000-1500 φ80×2000 φ180×1805
1250-2000 φ85×2300 φ190×1900
2000-3000 φ90×2700 φ210×2000
2500-5000 φ100×2600 φ230×2405
3000-6000 φ110×2600 φ256×2590
4000-10000 φ120×2800 φ256×2800
6000-8000 φ130×3010 φ256×2970
8000-10000 φ145×3010 φ256×3200
10000-15000 φ160×3500 φ270×3200
13000-25000 φ170×3415 φ317×3380



Thanks for visiting, hope to cooperate with your company.
