Product Details:
Payment & Shipping Terms:
|
| Plastic Processe: | WPC | Screw Diameter: | Ф45/2mm-Ф200/2mm |
|---|---|---|---|
| Place Of Origin: | Zhejiang, China | Length/Diameter Ratio: | L/D=18-35 |
| Material: | 38CrMoAlA | Type: | Twin Screw Barrel |

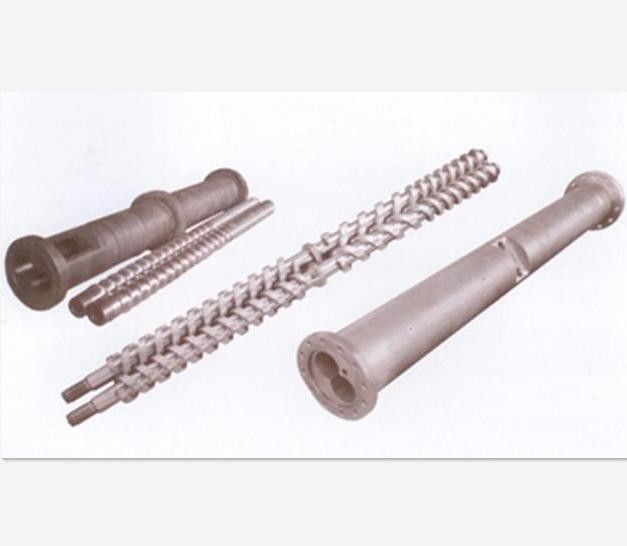

Parallel Twin Screw & Barrel 38CrMoAlA L/D 18-35
Material
High quality alloy-steel
1) 38CrMoAIA(JIS SACM645)
2) 42CrMo(JIS SCM440)
3) 9Cr18MoV
4) CW6Mo5Cr4V2
Heat-Treatment
Nitriding treatment
Electroplated hard-chrome finish
Spray bimetallic coating
Specification:φ52/2,φ60/2,φ65/2,φ70/2,φ72/2,φ75/2,φ80/2,φ85/2,φ90/2,φ93/2,φ100/2,φ105/2,φ110/2,φ115/2,φ120/2,φ125/2,φ130/2,φ140/2,φ150/2,φ160/2,φ170/2,φ180/2,φ190/2,φ200/2,φ250/2
Materials for Screw&barrel
| Base Materials | The finished product processing equirements |
| 38CrMoAIA,SACM645 | Nitriding treatment |
| Cr12MoV,Cr12 | Alloy steel |
| 38CrMoAIA,SACM645,40Cr,AISI4140,42CrMo | Bimetallic of the inner hole centrfugal casting |
| GHII3 | Nature hard after high temperature |
