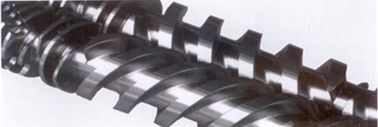

Small Conical Twin Screw Barrel For Plastic Extrusion Machine Alloy Hardness HRC55-62

China Small Conical Twin Screw Barrel For Plastic Extrusion Machine Alloy Hardness HRC55-62 supplier

Large Image :  Small Conical Twin Screw Barrel For Plastic Extrusion Machine Alloy Hardness HRC55-62

Product Details:

Place of Origin: Zhejiang
Brand Name: JINSHUNLUOGAN

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB Shanghai
Packaging Details: woode case package
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 120 Set/Sets per Month
Contact Now
Detailed Product Description
Straight Of Scre: 0.015mm Standard: ISO9001
Surface Roughness: Ra0.4μm Alloy Hardness: HRC55-62
Hardness Of Nitration: 950-1020Hv Dual Alloy Depth: >2mm

Plastic extrusion conical twin screw barrel Alloy hardness HRC55-62



Material of screw:



raw Material The finished product processing equirements
38CrMoAIA,SACM645,42CrMo Nitriding treatment
42CrMo,AISI4140 Hard chrome coated layer
4Cr5MoSiV1,SKD-61,SKD-11 Spraying bimetal alloy layer and nitriding treatment
HPM38,SI36,SUS440,9Cr18MoV High frequency quenching
GHII3 Nature hard after high temperature

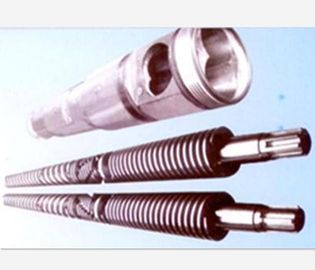

Conical twin screw and barrel:



Specification:Min φ35/77;Max:φ92/188.

Raw material tempering hardness:HB≥280

Nitriding Surface hardness:HV≥900

Nitriding depth:0.6-0.8mm





 Small Conical Twin Screw Barrel For Plastic Extrusion Machine Alloy Hardness HRC55-62





Thanks for visiting, hope to cooperate with your company.
