Product Details:
Payment & Shipping Terms:
|
| Extruder-type: | Ø40X26D | Unit-type: | SJ40×26-Sm500 |
|---|---|---|---|
| Lateral Shrinkage: | 45-50±2％ | Longitudinal Change: | 10-20±1％ |
| Screw Diameter: | φ40mm | Screw Radio: | 26:1 L/D |

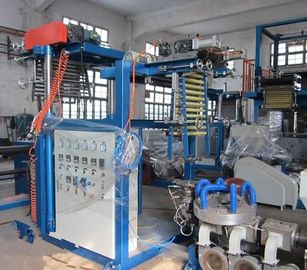

PVC heat shrinkable single lift blowing machine-SJ40-Sm500
extruder
1, screw: φ 40×26 (dual barrier head)
2, speed reducer: ZLYJ-133 (Hardened reducer)
3, the main motor: YVF-160M-4 11KW (dethon motor Djiteko frequency control)
4, ceramic heater: φ85×280×3 2.4KW group (Wuxi Kai Ling fan)
5, cooling fan: DF-5 0.55KW ×3 (Wuxi Kai Ling fan)
6, intelligent digital temperature controller: 5 group (Asia-Pacific instrument)
7, die: φ 80 (automatic)
8 ring: φ120 with blower 0.75KW (Wuxi Ling fan)
| Unit-type | SJ40-Sm500 |
| Extruder-type | SJ40x26D |
| Screw radio | 26:1 L/D |
| Driving motor | 15kw |
| Die diameter | Φ80mm |
| Width | 100-300mm |
| Thickness | 0.015-0.06mm |
| Output | 10-35kg/h |
| Lifting | Pillar under electric lift |
