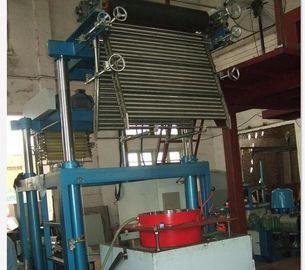

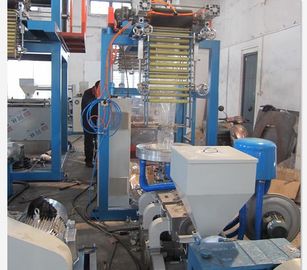

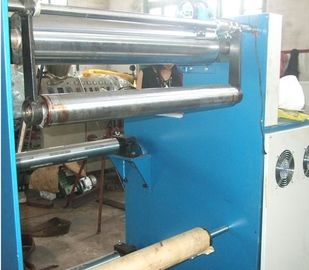

PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900

China PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900 supplier
PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900 supplier PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900 supplier PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900 supplier PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900 supplier

Large Image :  PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900

Product Details:

Place of Origin: Shanghai
Brand Name: BEIYANG
Model Number: SJ55×26-SM900

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: reconsideration
Packaging Details: 1 set with stretch film in 40 inch container
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Heating Power: 11KW Longitudinal Change: 3-5±1%
Screw Diameter: φ55mm Thickness: 0.025-0.07mm
Output: 40-55Kg/h Driving Motor: 18.5KW

PVC thermal shrinkable inflation film machine

structure

① extruder

② rotary die

③ wind ring spinning

④ the first traction shaper,

⑤ the second traction,

⑥ heating water tanks

⑦  the third traction

⑧ double-station wing machine

⑩ electric control box for extruder





                          PVC Heat Shrink Label Film Blowing Machine , Plastic Film Making Machine SJ55×26-SM900



Unit-type SJ55-Sm900
Extruder-type SJ55x26D
Screw radio 26:1/28:1 L/D
Driving motor 18.5kw
Heating power 11kw
Revolution die mould Φ100-Φ110mm
Width 350-700mm
Thickness 0.025-0.07mm
Output 40-55kg/h
Lifting Pillar under electric lift
