| Screw Radio: | 26:1 L/D | Width: | 100-500mm |
|---|---|---|---|
| Tickness: | 0.025-0.07mm | Screw Diameter: | φ45mm |
| Driving Motor: | 11KW | Output: | 20-35Kg/h |

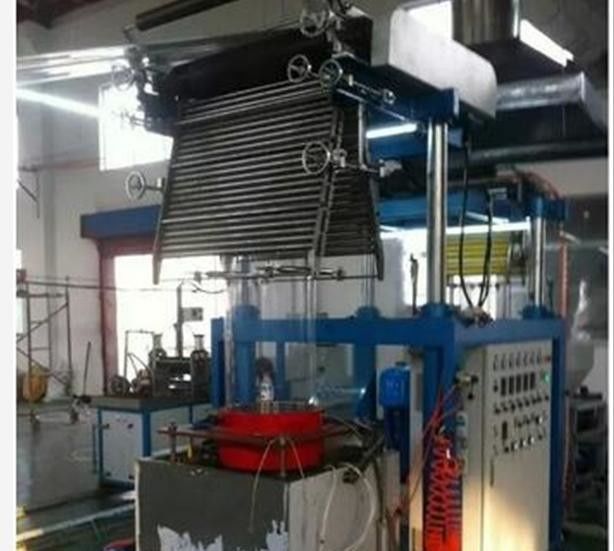

PVC Shrinkage film unit--SJ45-Sm700
Extrusion machine parts
1. Screw:Ø45×26
2. Hardened gear speed reducer:ZLYJ-146
3. Main motor:YVF2160L-4 15KW
4. Radiating ceramic heater:Ø85×280 2.4KW×(three groups)
5. Cooling fan:DF-5 0.55KW×(three groups)
Technical Data
| Unit-type | SJ45-Sm700 |
| Extruder-type | SJ45x26D |
| Screw radio | 26:1 L/D |
| Driving motor | 11kw |
| Heating power | 9.5kw |
| Revolution die mould | Φ80-Φ90mm |
| Width | 100-500mm |
| Thickness | 0.025-0.07mm |
| Output | 20-35kg/h |
| Lifting | Pillar under electric lift |
